TSC48A-LED Traffic signal main frame

Product Name:
TSC48A-LED Traffic signal main frame
Model No.:
TSC48A-LED
Minimum Order:
1

Product Abstract:

TSC48A series of traffic signal controller is against the crossing demand for price-sensitive、powerful、safe and reliable for well-designed. Strictly implementation of the (GB25280-2010) relevant standards

Product Description

Following the advantages of eight:

● Advantage price

● Indemnificatory

● Security

● Easy operation

● Retractility

● Configurability

● Flexible scalability

● Multilingual screen

Product Introduction:

Controller uses ultrahigh brightness LED segment displays and LED crossroads Mimic screen display the Interface component, with RS-232, RS-485, Real-time communication countdown, Mini-USB, GPS equipment, Wireless remote control, Wireless networking, 10 / 100M Ethernet, Remote 2G / 3G networking, Wireless hand control, Digital dimming,SMB, etc. function Interface.

Features:

◆ Data automatic storage for more than 10 years, the user optional anti-radiation program memory;

◆ Especially the dual-core system design, to avoid all kinds of unpredictable reasons that system crashes cause the traffic gridlock;

◆ Be occurred the error automatic software or hardware downgrade to process and issue an error alarm and event records;

◆ Equipped with USB and RS-232 for easy connection to a computer for manages upgrades, wireless or RS-485 can be connected to 32 real-time the communication countdown screen;

◆ Complete self-test, error detection, error correction and monitoring system that can comfortably withstand a variety of outdoor environments interference;

◆ Based on the GPS latitude and longitude true solar time, calculate the every day's sunrise and sunset time for the positioning and dimming function;

◆ Support the 8 kinds of manual mode seamless switching control; almost covering the traffic police required the mode of temporary control;

◆ Active or passive the two-way green wave control, full / half-sensing control、multi-time control、fixed-cycle control、yellow flash control and so on

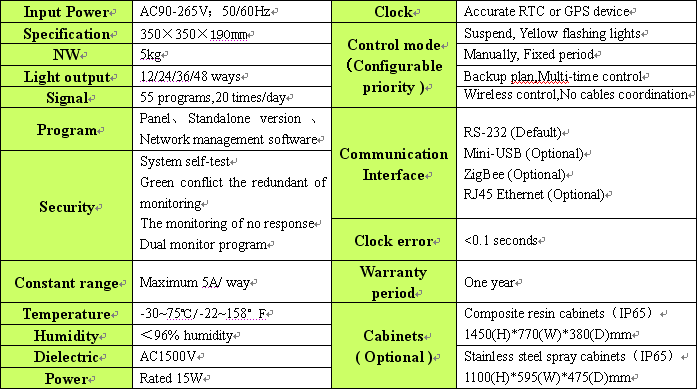

Technical parameters:

Intersection Simulation:

If the English expression error,Chinese version shall prevail

The company has the power of final interpretation
